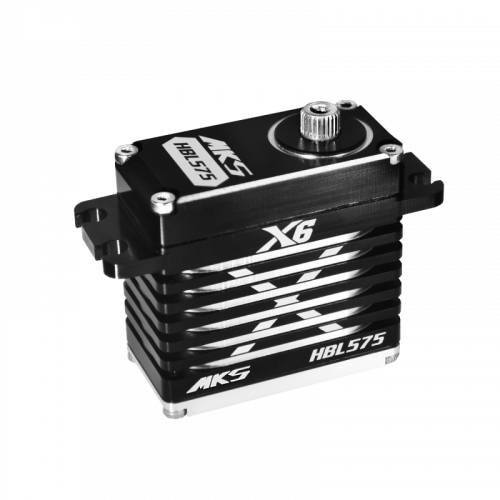

High speed brushless motor racing servo


- Perfect Servo for 1/10, 1/8 scale buggy.
- High speed, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Extremely strong Chrome-Titanium alloy gear.



  Torque: 18 kg-cm (6.0V) / 250 oz-in

  Torque: 22 kg-cm (7.4V) / 305.5 oz-in

  Torque: 24 kg-cm (8.2V) / 333.3 oz-in

  Speed: 0.082 s (6.0V)  /  0.066 s (7.4V)  /  0.06 s (8.2V)

 Weight: 71.4 g  (2.51 oz)

Dimension:40 x 20 x 38.8 mm

Technical
Torque (kg-cm) 18 (6.0V) / 22 (7.4V) / 24 (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Dead Band 0.0008 ms (Default)
Speed 0.082 s (6.0V) / 0.066 s (7.4V) / 0.06 s (8.2V)
Gear Metal Alloy Gear
Working Frequency 1520μs / 333Hz
Bearing 2x Ball Bearing
Motor Japanese-made Brushless Motor

HBL575

  • Product Code: S0026001
