Special for 700~800 class helicopter rudder, high speed response, narrow band.

Recommended Compatiable Gyros

Spartan DS760、Spartan Quark、Futaba GY611、GY601、GY520、ALIGN GP700、GP750、Mikado V-Bar Tail、CSM SL720、Curtis Youngblood Mini-G 、Solid G、Thunder Tiger TG-7000、BeastX Mircobeast



  Torque (6.0V): 8.2 kg-cm / 113.9 oz-in

  Torque (7.4V): 10.1 kg-cm / 140.3 oz-in

  Torque (8.2V): 11.19 kg-cm / 155.4 oz-in

  Speed: 0.044 s (6.0V)  /  0.036 s (7.4V)  /  0.032 s (8.2V)

  Weight: 73 g

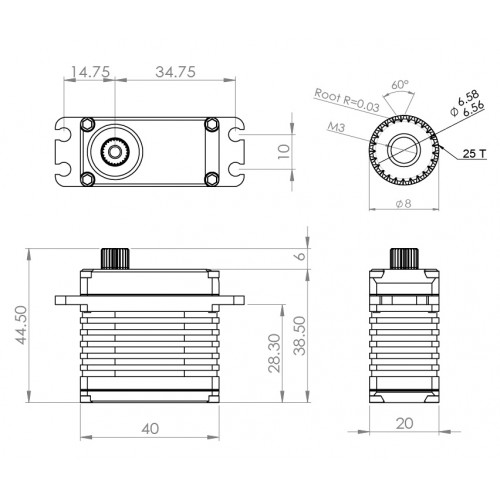

Dimension: 40 x 20 x 38.5 mm

Technical
Torque (kg-cm) 8.2 (6.0V) / 10.1 (7.4V) / 11.19 (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Dead Band 0.0008 ms (Default)
Speed 0.044 s (6.0V) / 0.036 s (7.4V) / 0.032 s (8.2V)
Gear Metal Alloy Gear
Working Frequency 760μs / 560Hz
Bearing 12x8 mm Double bearings
Motor Japanese-made Brushless Motor

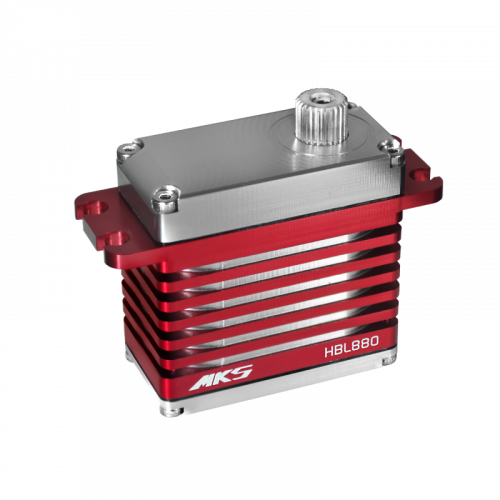

HBL880
