Torque (6.0V): 13.6 kg-cm / 188.9 oz-in

  Torque (7.4V): 17 kg-cm / 236 oz-in

  Torque (8.2V): 18.6 kg-cm / 258.3 oz-in

  Speed: 0.12 s (6.0V)   /  0.10 s (7.4V)  /  0.09 s (8.2V)

  Weight: 70.15 g  (2.47 oz)

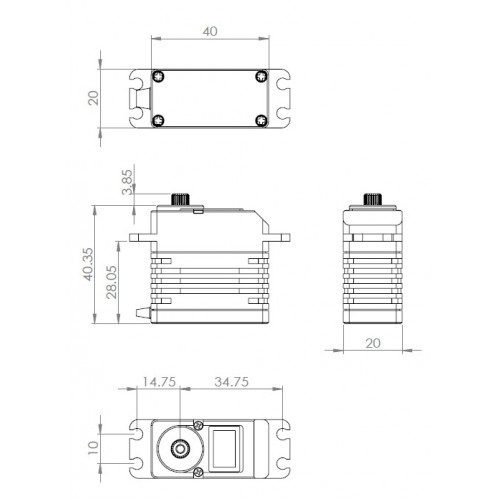

Dimension: 40 x 20 x 40 mm

Technical
Torque (kg-cm) 13.6 (6.0V) / 17 (7.4V) / 18.6 (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Dead Band 0.0008ms (Default)
Speed 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Gear Metal Alloy Gear
Working Frequency 1520μs / 333Hz
Bearing 2x Ball Bearing
Motor Japanese-made Brushless Motor

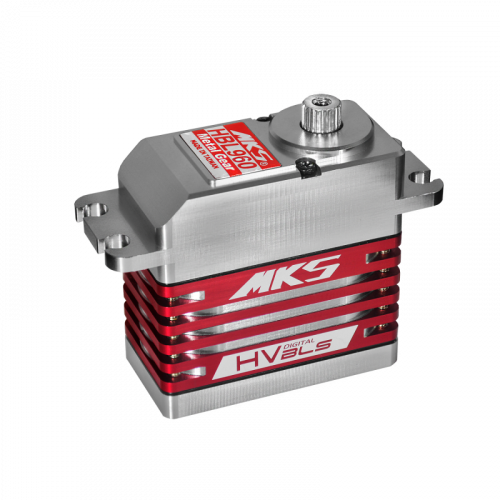

HBL960
