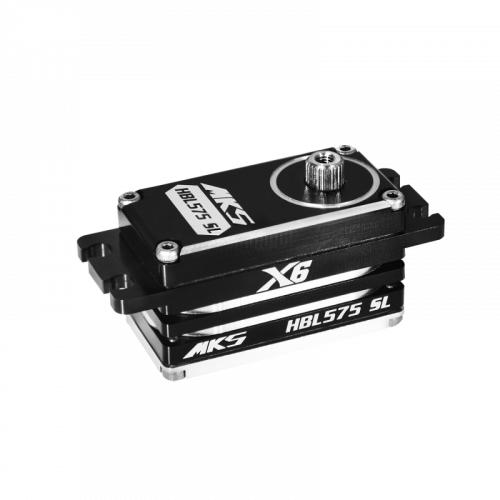

High voltage brushless motor low profile servo


- Ideal for 1/10 surface applications.
- Combining full metal gears, case and amazing speed.
- The low-profile dimensions makes it perfect for any vehicle that is cramped for space.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- High speed, incredible efficiency, and low power consumption than comparable servos.



  Torque (4.8V): 10 kg-cm / 138.9 oz-in

  Torque (6.0V): 13.3 kg-cm /  184.7 oz-in

  Torque (7.4V): 16.8 kg-cm /  233.3 oz-in

  Speed: 0.10 s (4.8V)  /  0.08 s (6.0)  /  0.07 s (7.4V)

  Weight: 53.51 g  (1.89 oz)

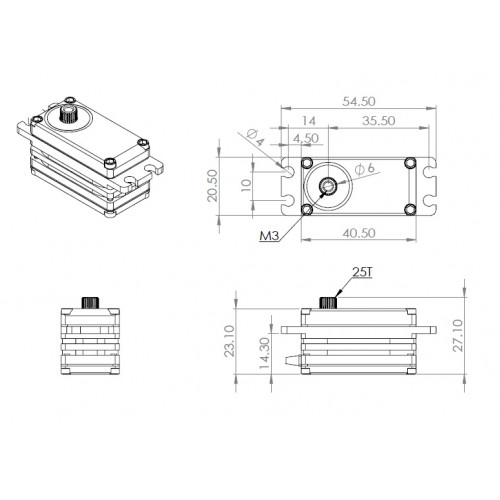

Dimension:40.5 x 20.5 x 23.1 mm

Technical
Torque (kg-cm) 10 (4.8V) / 13.3 (6.0V) / 16.8 (7.4V)
Dead Band 0.0008 ms (Default)
Speed 0.10 s (4.8V) / 0.08 s (6.0) / 0.07 s (7.4V)
Gear Metal Alloy Gear
Working Frequency 1520μs / 333Hz
Bearing 2x Ball Bearing
Motor Japanese-made Brushless Motor

HBL575SL

  • Product Code: S0026003

Tags: car
