No Mounting Tab version

For DLG, HLG, F3K



  Torque (3.7V):  1.6 kg-cm / 22.2 oz-in


  Torque (4.8V) 2.0 kg-cm / 27.8 oz-in


  Torque (6.0V) 2.4 kg-cm / 33.3 oz-in


  Speed:  0.22s (3.7V) / 0.16s (4.8V) / 0.13s (6.0V)


  Weight:   7.4 g (+0.1 g)  /  0.264 oz (+0.0003 oz)

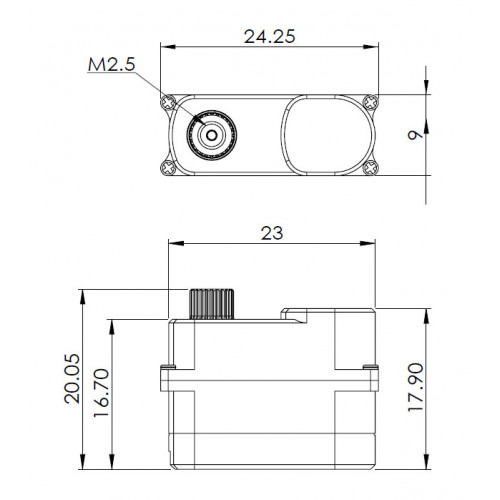

Dimension : 23 x 9 x 16.7 mm

Technical
Torque (kg-cm) 1.6 (3.7V) / 2.0 (4.8V) / 2.4 (6.0V)
Working Voltage 4.8V ~ 7.0V DC Volts
Dead Band 0.001 ms (Default)
Speed 0.22s (3.7V) / 0.16s (4.8V) / 0.13s (6.0V)
Gear Metal Alloy Gear
Working Frequency 1520μs / 333Hz
Bearing 1x Ball bearing + 1x Oil-retaining Bearing + 2x Jewel Bearing
Motor Coreless Motor

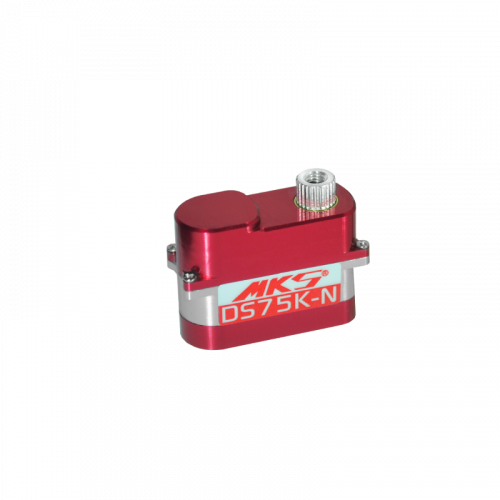

DS75K-N

  • Product Code: S0015009

Tags: gliders
